Flat Metal Roof Leaking Issues Explained

Recognising and Addressing Common Flat Roof Issues for Homes on the Central Coast

Although flat roofs are not the predominant choice in the Australian roofing market, their adoption is steadily increasing among both residential and commercial buildings. These roofing systems are frequently utilised on patios, carports, walkways, and in areas where a low-pitch roof is required. When the slope is minimal, flat roofs may also be referred to as “skillion roofs.”

Flat roofs offer numerous benefits but also present distinct challenges that homeowners must be aware of. It is essential to grasp the common complications associated with flat roofing systems and to implement effective prevention strategies. This is particularly crucial on the Central Coast, where the coastal climate, heavy rainfall, and salty air can exacerbate roofing issues.

What Influences the Growing Preference for Flat Roofs Among Homeowners?

The increasing demand for flat roofs in both residential and commercial constructions can be attributed to several compelling factors:

• They are quicker and easier to install, facilitating faster project completion
• They provide enhanced maintenance access, making routine inspections and repairs straightforward
• They serve as excellent platforms for solar panel installations, encouraging energy efficiency

The primary concern with flat roofs revolves around managing water drainage. Water is the main adversary of your roof. When planning a new roofing installation or updating an existing one, it is vital to consider various factors, particularly rainfall, which can vary significantly across Australia’s different regions.

What Are the Main Drainage Issues Associated with Flat Roofs?

Unlike pitched roofs, which allow rainwater to drain off quickly into gutters, flat roofs have a limited slope. This design can lead to water accumulation that remains for extended periods. If water is not effectively directed off the roof, it may result in:

• Surface staining and degradation of roofing materials
• Structural weakening of roofing elements over time
• Accumulation of mould and mildew, posing potential health hazards
• Leaks that can penetrate into the interior of the building

The solution to these challenges lies in effective roof plumbing and thoughtful design that addresses the specific challenges posed by flat roofs.

How to Design Flat Roofs for Optimal Drainage Performance

Before installation, a qualified roofing contractor will evaluate several critical factors that affect drainage efficiency:

• Local rainfall intensity and prevailing weather patterns
• Overall roof area and specific dimensions
• Gutter configurations and effective drainage outlets
• Specifications and dimensions of downpipes
• Overflow prevention measures to manage excess water
• Considerations regarding roof pitch to enhance drainage

Most roofing manufacturers advocate for a minimum slope of 5° for low-pitch roofs. Roofs with less than this slope can compromise waterproofing efforts and may even void product warranties, leading to potentially expensive repairs.

Standard corrugated roofing sheets, while ideal for pitched roofs, are unsuitable for very low-pitch applications. For flat roofs, specific roofing profiles designed for efficient water shedding are highly recommended to ensure long-term performance and durability.

Identifying the Best Metal Roofing Profiles for Low-Pitch and Flat Roof Installations

Two of the most highly recommended roofing profiles for low-pitch and flat roofs include:

Trimdek: This versatile profile is suitable for both roofing and wall applications. Its 28mm rib height and specially designed capillary groove enhance water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile employs hidden clips instead of screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent choice for low-pitch installations.

Choosing the correct roofing profile based on your roof pitch and local rainfall conditions is essential for ensuring the long-lasting performance and reliability of your roofing system.

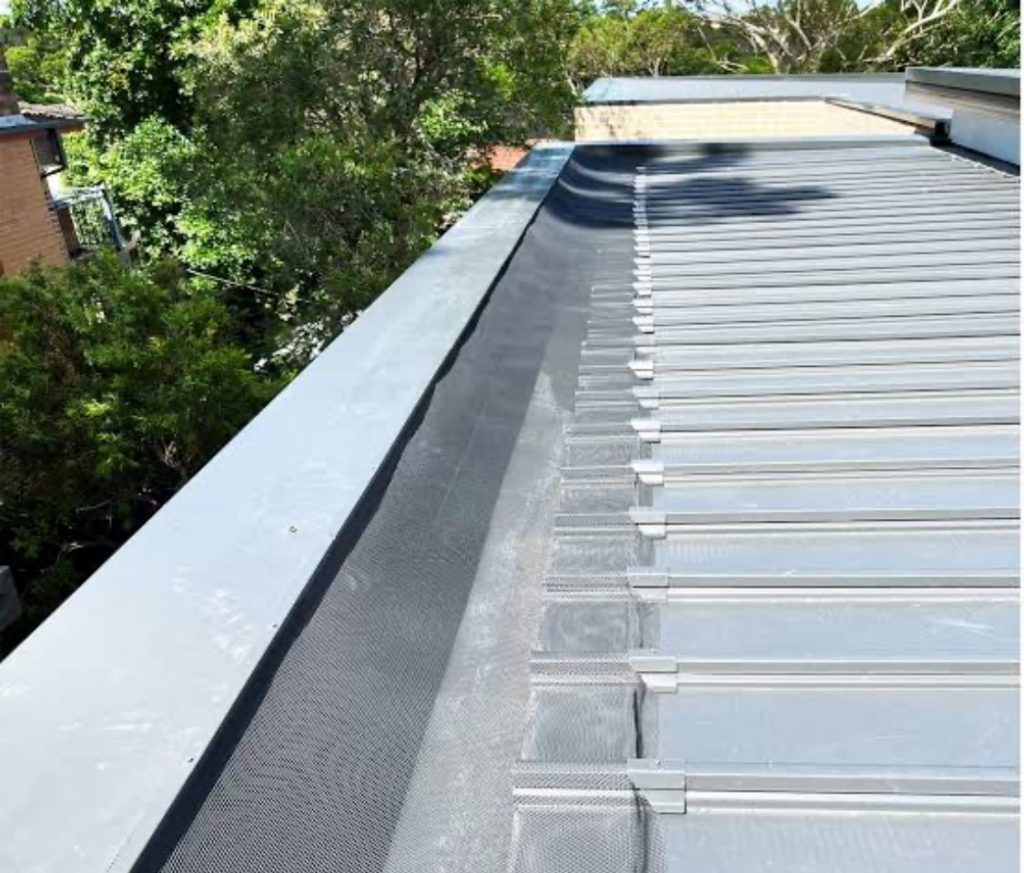

Strategies for Managing Box Gutters and Drainage on Flat Roofs

On flat roofs, box gutters are frequently used to connect roof panels to drainage outlets. As box gutters are positioned below the roof plane, they require meticulous detailing and installation to prevent blockages and water backup issues.

Common challenges associated with box gutters include:

• Debris accumulation from surrounding trees and foliage
• Improper fall or slope that impedes water flow
• Overflowing back into the roof structure, leading to potential leaks
• Blocked downpipes that hinder effective drainage

Addressing these challenges begins with appropriate gutter design and a commitment to regular maintenance to ensure optimal functionality.

What Factors Should You Consider When Choosing Guttering for Your Flat Roof?

Standard gutters may not adequately handle the water flow demands of flat roofs. It is often necessary to install guttering designed to accommodate larger water capacities. Next, we will explore various drainage and overflow options that can be integrated into your flat metal roof design.

• Facilitate faster water removal during heavy rainfall
• Effectively sweep debris away with high flow capabilities
• Provide easier cleaning and maintenance options for homeowners

Our top choice for gutters is self-cleaning designs, which are ideal for flat metal roofs while also offering an aesthetically pleasing appearance!

We recommend a half-round gutter due to its superior water-carrying capacity, enabling quicker drainage. This design effectively removes silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters must be adequately sized based on local rainfall patterns and connected to appropriately sized downpipes (for instance, 100mm × 75mm) that can manage substantial water volumes. In tree-rich areas, installing leaf diverters or guards can significantly mitigate blockage issues.

How Flashings Are Essential for Preventing Water Entry at Roof Joints

Flashings are critical components installed at joints where roof sheets meet walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is paramount, as water can collect around these joints if they are not correctly sealed.

To effectively prevent water ingress:

• Flashings must be precisely shaped to conform to the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra care is needed at corners and seams where water may collect

By ensuring that flashings and sealants are installed correctly, you can achieve a watertight roof, even during heavy rainfall. Our team takes special care during installation and uses high-quality waterproof sealant to prevent water from pooling in these vulnerable areas.

Why Is Consistent Maintenance Vital for the Longevity of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require routine inspections and maintenance to ensure their effectiveness. This encompasses:

• Removing debris from gutters and box gutters to guarantee clear drainage
• Inspecting downpipes for any signs of potential blockages
• Examining roof surfaces for small cracks or areas where water may accumulate
• Re-sealing flashings as necessary to maintain waterproof integrity

Conducting regular maintenance checks can prevent the need for more extensive repair work in the future, thereby extending the life of your roofing system.

Discover the Advantages of Expertly Installed Flat Roofs

When designed and installed by skilled metal roofing professionals, flat roofs provide:

• A modern, sleek architectural aesthetic that enhances property value
• Optimised space for patios, decks, or utility services, maximising utility
• Convenient access for maintenance or solar panel installation, simplifying upkeep

Moreover, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed correctly, improving the overall functionality and appearance of the building.

How to Ensure You Achieve the Ideal Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can deliver both functionality and long-lasting durability in a coastal environment. Whether you are embarking on a new construction project, extending a patio, or adding a carport, selecting the appropriate roofing system and drainage design is crucial for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the ideal time to address any roofing concerns and prevent more significant issues in the future.

Flat Roof FAQs: Do Flat Roofs Face More Issues Than Pitched Roofs?

Flat roofs can indeed experience more drainage challenges if they are not designed adequately. Without a sufficient slope, water may pool or leak into the building structure. However, when constructed with the correct pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What is the Ideal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees requires careful selection of materials and detailed guttering strategies to ensure proper drainage.

Is it Feasible to Install Solar Panels on a Flat Metal Roof?

Certainly, flat metal roofs are ideal for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from collecting underneath, ensuring efficiency in energy production.

What Are Box Gutters and Why Are They Used on Flat Roofs?

Box gutters are internal roof gutters positioned below the roof line, often found between roof sections or along parapet walls. They are commonly used on flat roofs to effectively manage runoff, but they must be carefully sized and sloped to avoid blockages and overflow problems that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs typically need higher-capacity gutters and larger downpipes to effectively manage water drainage. Half-round gutters and 100x75mm downpipes are often employed to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters can be beneficial in reducing maintenance needs.

What is the Expected Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as required will significantly extend the roof's lifespan and performance.
