Dedicated Circuits for Heavy Tools in Workshop Power Solutions

If you own a shed on a rural property and are contemplating its transformation into a fully operational workshop, prioritising the electrical setup is essential. Utilising a MIG welder, air compressor, and table saw on the same circuit as your home can result in severe complications, including frequent tripping of breakers, flickering lights, and potentially dangerous overload situations that could compromise both safety and efficiency.

This detailed guide outlines the vital aspects of wiring a dependable workshop in rural regions of the Mid North Coast. We will delve into the significance of dedicated circuits, sub-boards, and the advantages of three-phase power for larger machinery. If your workshop needs are limited to basic power provisions—such as lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a suitable starting point. This article specifically addresses workshops requiring substantial power for demanding tasks.

Recognise the Critical Need for Dedicated Circuits in Your Workshop

Many homes operate with multiple power outlets on shared circuits, which is typically adequate for low-power devices like kettles and televisions. issues arise when attempting to run a 32-amp MIG welder and an air compressor simultaneously. This can create significant challenges if not properly managed.

Consider the potential consequences of connecting heavy machinery to household circuits:

• Frequent tripped breakers — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker immediately or, worse, cause the wiring to overheat before the breaker can react.
• Voltage drops — Extended cable runs from the main board to the shed can lead to voltage sag. This results in your tools running at higher temperatures, operating slower, and wearing out more quickly.
• Power disruptions in the home — A power interruption in the kitchen could occur when the compressor starts, often leading to unwanted discussions.
• Increased fire risks — Overloaded wiring within walls and cable runs is a common cause of electrical fires in rural areas.

Implementing dedicated circuits can effectively mitigate these issues. Each heavy tool should have its own dedicated circuit, appropriately sized for its load, accompanied by individual breaker protection. This configuration ensures that no resources are shared, thereby preventing overload.

Assess the Power Requirements of Common Workshop Equipment

Before your electrician can devise an effective circuit layout, it is essential to grasp the power requirements of your equipment. Below is a summary of the typical power demands for common workshop tools:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders typically operate at the higher end. Three-phase units will have varying power requirements (more details later).
• Air compressor — Consumes around 10A to 15A. The startup surge can be considerable—compressor motors often draw three to four times their running current for several seconds upon starting.
• Table saw — Generally uses between 10A to 15A for quality cabinet saws. More affordable contractor saws may consume less power, but you are likely not pursuing a budget option.
• Lathe (wood or metal) — Similar to table saws, these typically require between 10A and 15A, with metal lathes usually being on the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It must run continuously while other tools are in use, necessitating its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, thus requiring a dedicated circuit.

When you sum the power draw, it becomes clear that a single 20-amp circuit from the house will not suffice. A well-equipped workshop can easily require 80 to 100+ amps across all circuits when operating at full capacity, underscoring the need for a comprehensive electrical plan.

Choose the Right Circuit Breaker Size and Implement RCD Protection

Every circuit in your workshop requires a breaker that corresponds with the cable size and anticipated load. Your electrician will calculate this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Ideal for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery requiring considerable power.
• Three-phase breakers — These should be sized according to specific equipment demands (more details below).

RCD protection is vital. In line with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must incorporate RCD (safety switch) protection. This legal requirement aims to safeguard against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs promptly disconnect power in the event of a current leak to earth, which can mean the difference between a minor shock and a serious injury.

Typically, your electrician will use a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that integrate both functions. RCBOs are particularly beneficial in workshops because a fault in one circuit does not disrupt power to others, resulting in a more reliable electrical system.

Install a Dedicated Sub-Board to Satisfy Your Workshop's Electrical Needs

Rather than running multiple individual cables back to the main switchboard, fitting a dedicated sub-board in your workshop presents a more efficient solution. Here are the advantages:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This setup reduces voltage drop and lowers cable costs.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t have to return to the house to reset it, enhancing efficiency.
• Future expansion — A properly sized sub-board allows for the addition of more circuits in the future, making it straightforward to accommodate new tools.
• Isolation capability — You can switch off all workshop power from a single main switch without impacting the house's electricity, serving as a crucial safety feature.

If your house switchboard is outdated or functioning at full capacity, an upgrade may be needed to adequately support the workshop sub-board. Older ceramic fuse boards are unlikely to handle the increased load safely.

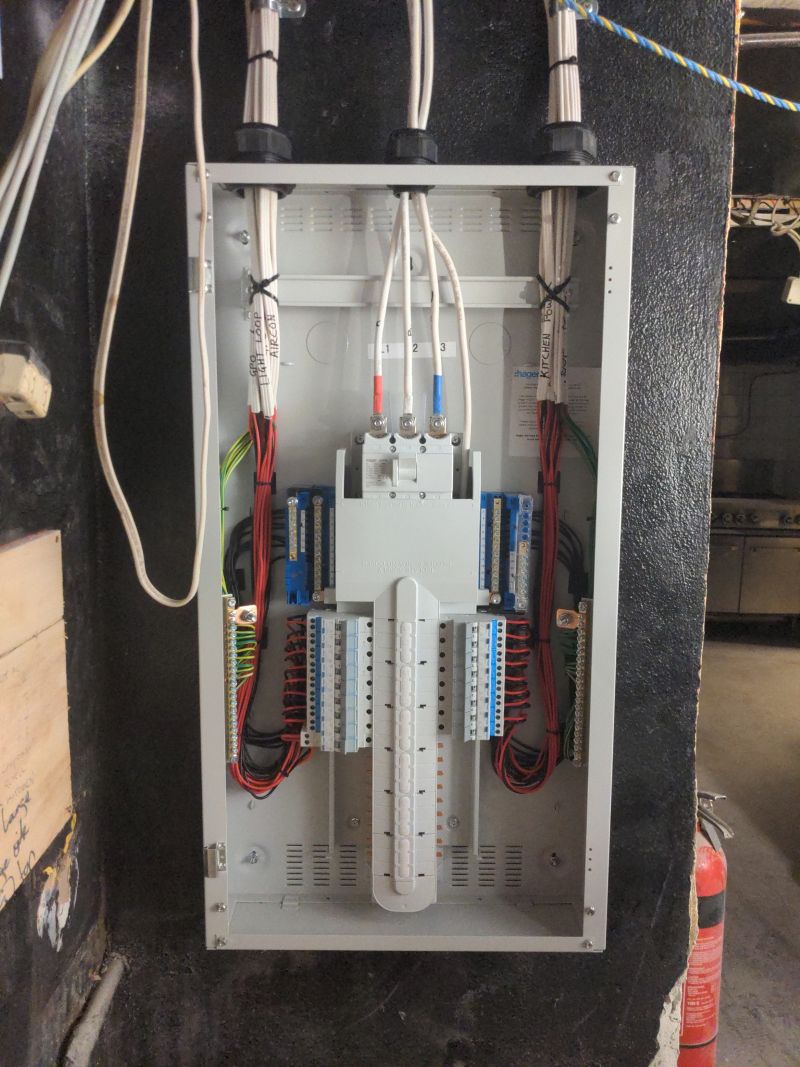

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future expansions to ensure long-term efficiency.

Devise a Comprehensive Lighting Plan for Your Workshop

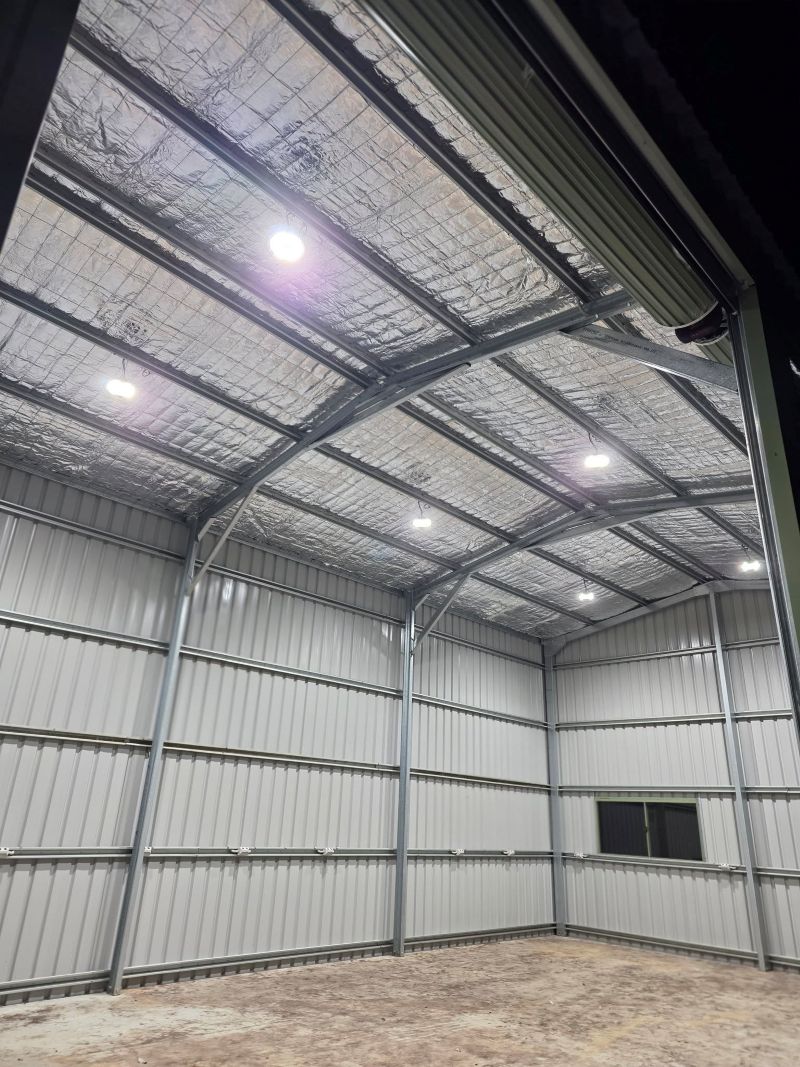

Sufficient lighting is essential for safety in your workshop. Clear visibility is crucial, especially when working with sharp blades and hot materials. Below are key considerations for your lighting:

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure visibility.
• Dust-proof fittings — Standard lights can become obstructed with sawdust and metal filings. Opt for IP-rated fittings that are dust and moisture resistant for durability and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is vital for precision work, improving productivity and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring you still have illumination if a power circuit trips. Being left in the dark next to a running table saw poses significant safety risks.

We have extensive experience with lighting layouts in commercial settings. Our team can assist you in creating a workshop lighting design that significantly enhances your working environment while complying with safety standards.

Plan for Efficient Ventilation and Dust Extraction Systems

When engaged in woodworking or welding, ensuring adequate ventilation is as critical as having sufficient electrical power. Dust extraction systems and exhaust fans require dedicated circuits for several important reasons:

• Continuous operation — Your dust extractor must function whenever you are cutting. It cannot share a circuit with the tool it supports, as this would compromise safety and efficiency.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when specific tools are switched on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure adequate airflow. If you are using a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications.

Leverage the Benefits of Three-Phase Power for Heavy Equipment

When conducting intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power provides several distinct advantages:

• Increased power capacity — Three-phase motors are more efficient and deliver greater power without the excessive startup surges often seen with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, extending the lifespan of your tools and enhancing overall efficiency.

Accessing three-phase power in rural areas of the Mid North Coast depends on availability at the street level. Some properties may already have a three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For further details, refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is accessible, your workshop will necessitate the installation of a three-phase switchboard equipped with appropriately rated breakers and an effective earthing system to ensure safety and compliance.

Protect Your Equipment with Surge Protection

Tools equipped with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Your workshop generates surges each time a large motor starts or stops. Coupled with the voltage instabilities often found in rural power lines, your equipment is at significant risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they adversely affect your tools. This is a cost-effective measure compared to the expense of replacing the electronic components of a $3,000 welder or CNC controller.

If your property is susceptible to storms—which is common in the Mid North Coast—we recommend adding surge protection at the main switchboard to shield against lightning-induced surges that could damage your equipment.

For properties reliant on a generator for backup power, incorporating a generator changeover switch ensures seamless transitions between mains power and generator supply without risking back-feeding or damaging connected equipment.

Incorporate Additional Features into Your Workshop Wiring

Here are several more features to consider incorporating into your workshop wiring from the beginning:

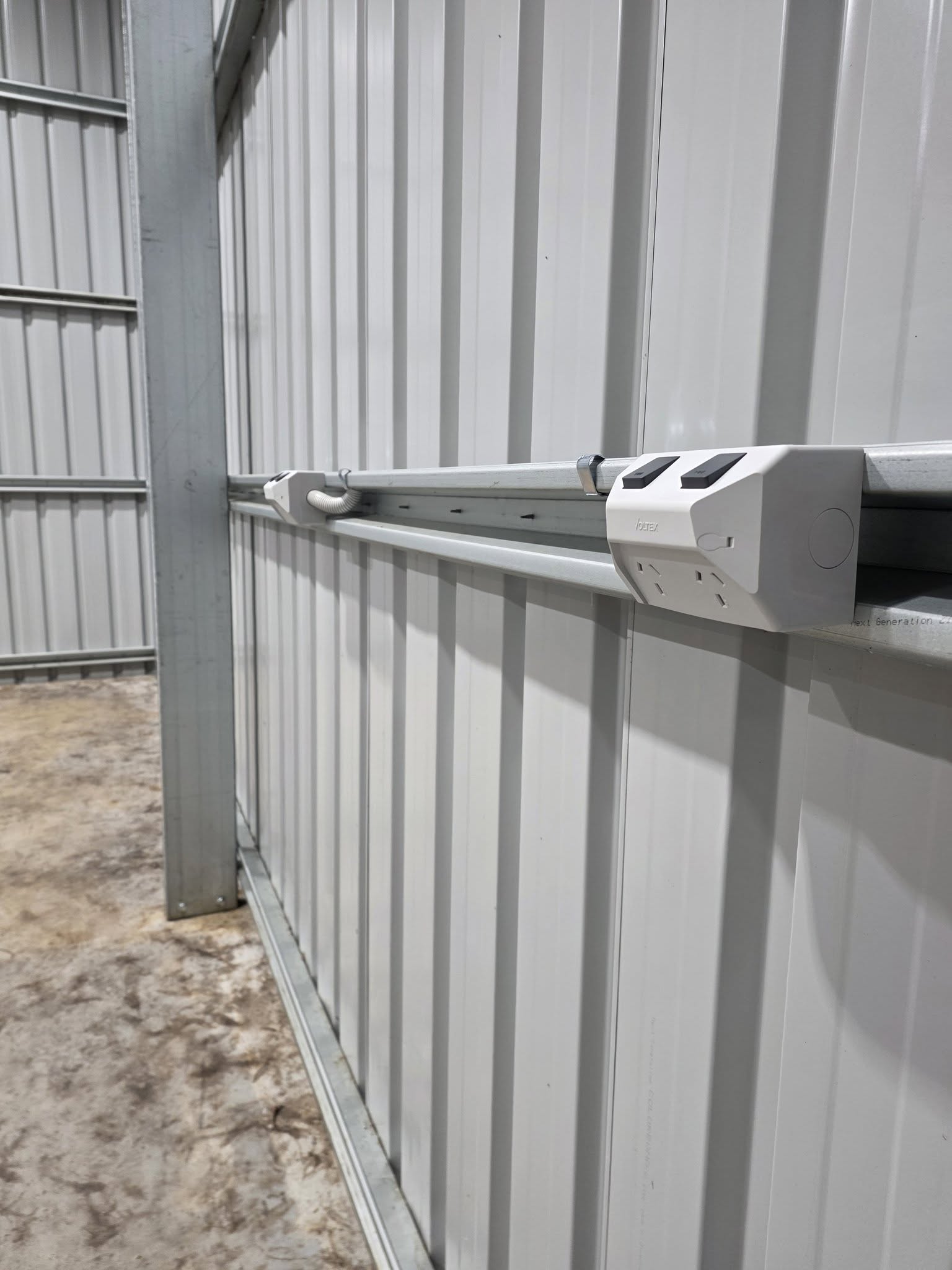

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and outlets conveniently located near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. Running cables during the initial fit-out is significantly easier than after the walls are completed.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas that lack sufficient street lighting.
• EV or equipment charging — If you are using electric equipment (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Estimate the Financial Outlay for Your Workshop Electrical Setup

Cost estimates will vary based on the size of the workshop, the number of circuits needed, and whether three-phase power is essential. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures represent initial estimates. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will elevate overall costs. We provide transparent quotes tailored to your specific workshop and equipment needs—there are no hidden fees involved.

Critical Reminder: All Electrical Work Must Be Performed by Licensed Professionals

This is a crucial point to stress. In New South Wales, all electrical wiring work must be executed by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to considerable fines. If someone offers to perform the work cheaply without a licence, it is not a saving—it is a risk that could have serious consequences.

Your Most Common Questions Answered

Can I Use My Welder with a Standard Power Point?

Small stick welders (up to approximately 140A output) can indeed be used with a standard 10A or 15A power point. Any larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately or potentially cause the wiring to overheat if the breaker is faulty. If you are welding frequently, it is essential to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Typically Needed in a Workshop?

The number of circuits required will depend on your tools, but a well-equipped workshop generally necessitates a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power circuits, dust extraction, lighting, and a couple of spares for future expansions. We tailor the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Required for a Home Workshop?

Not necessarily. Most home workshops operate effectively on single-phase power with dedicated circuits. Three-phase power is only necessary if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Refer to our complete guide on Do I Need Three-Phase Power on My Property? to determine if it aligns with your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will assess this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.
