Shed Wiring Tips for Electricians in Countryside Settings

If you own a shed situated on acreage and find managing extension cords from your home to be cumbersome, it is essential to ensure that your shed is wired correctly and safely. Whether you require a basic storage shed that primarily needs lighting and a power point, or a fully equipped workshop that accommodates welders and compressors, adhering to appropriate procedures is crucial. In NSW, the only legitimate way to achieve this is by hiring a licensed electrician, who will ensure that the installation meets all safety and legal standards.

This comprehensive guide outlines the essential steps to effectively supply electricity to your shed, detailing what your electrician will require for the installation process while providing a cost estimate relevant to the Mid North Coast.

Maximise Power Supply to Your Shed: A Detailed Guide on Effective Cable Runs

The foremost consideration for any shed wiring project is the efficient transmission of power from your main switchboard to the shed itself. On larger properties, this distance can extend to 30, 50, or even over 100 metres. The greater the distance, the larger the diameter of the cable needed to effectively manage voltage drop, which is critical for ensuring adequate power supply.

When planning your cable runs, you typically have two main options to consider:

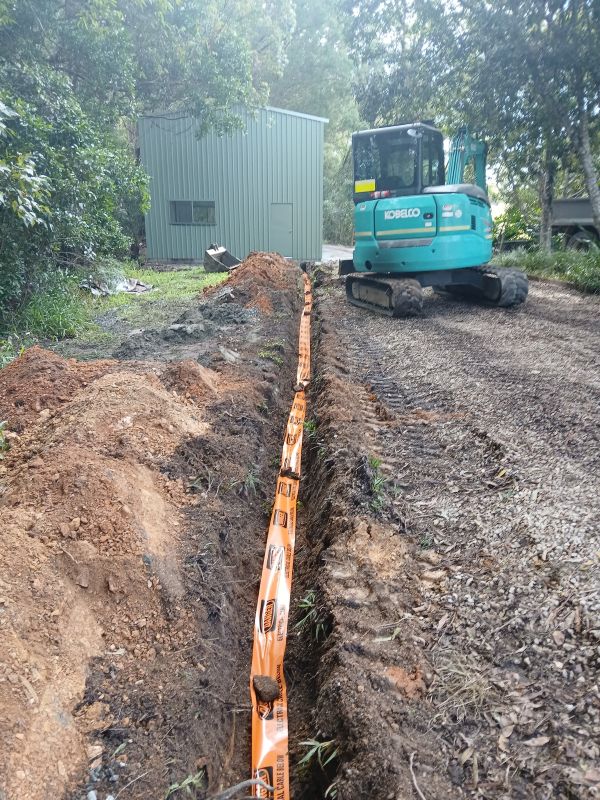

• Underground cable run — This is the most common and visually appealing option. Your electrician will install durable cable through orange conduit buried at least 500mm deep, or deeper in areas with significant vehicle traffic. This method protects the cable from adverse weather conditions, wildlife interference, and falling branches, making it the preferred choice for most properties with substantial acreage.
• Overhead cable run — Although less common, this option may become necessary in situations where solid rock is present or if the terrain complicates trenching. Overhead runs must adhere to specific clearance heights and require support poles, which can significantly escalate costs.

For the majority of properties located in or around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is the most recommended and effective approach. Your electrician in Bellingen can evaluate your site and suggest the optimal route for the installation, ensuring maximum efficiency.

Establish a Reliable Power Supply for Your Shed: The Importance of a Dedicated Sub-Board

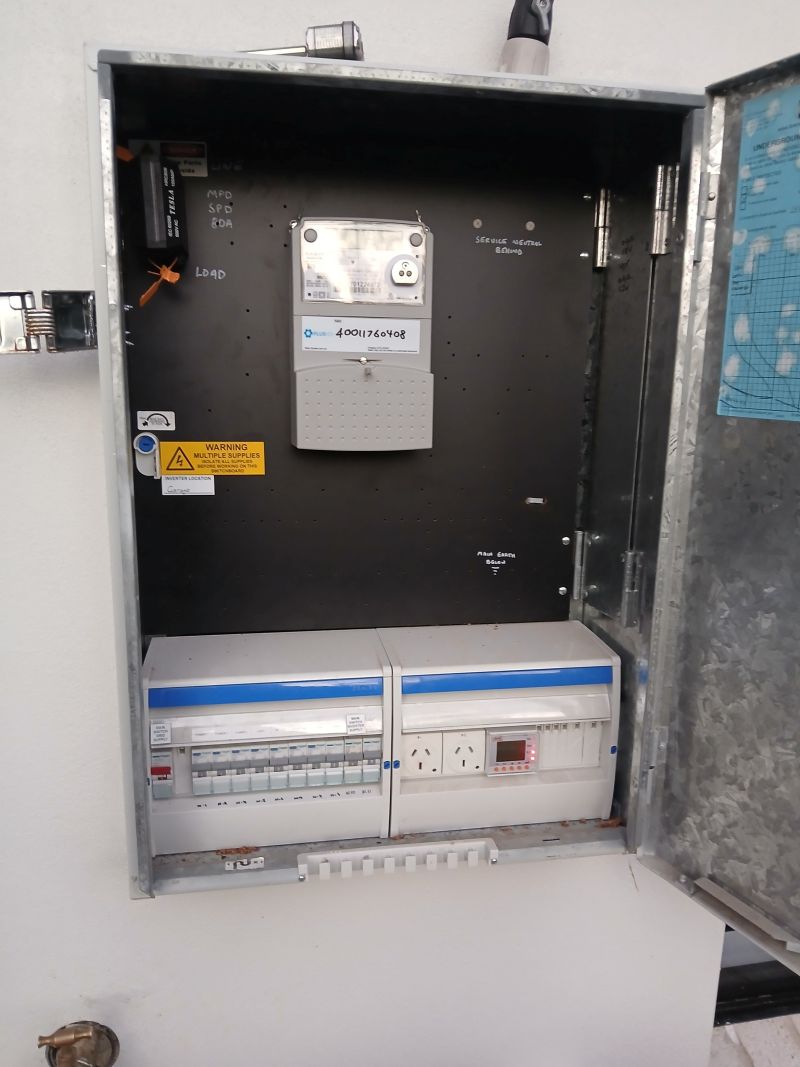

Merely running a single cable to the shed and plugging in appliances is insufficient. Any shed equipped with a proper power supply must feature a dedicated sub-board, often referred to as a distribution board. This vital component functions as a mini switchboard within the shed, effectively managing all circuits and ensuring safety.

Your sub-board will typically consist of the following essential components:

• Main switch — This component enables you to isolate all power to the shed independently from the main house, enhancing both safety and control over your electrical systems.
• RCDs (Residual Current Devices) — These devices are mandated by NSW electrical regulations and provide rapid power cut-off, often in mere milliseconds, in the event of a fault. This feature is crucial for safety in a shed environment where moisture, dust, and damaged leads are common.
• Circuit breakers — These components provide individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits, ensuring that any issues are contained and do not affect the entire system.

If your house's switchboard is outdated, your electrician may also recommend upgrading it to effectively handle the additional load directed to the shed, ensuring a robust and compliant power supply.

What Key Features Should Be Installed Inside Your Shed for Maximum Functionality?

The specific installations that your electrician performs inside the shed will depend entirely on its intended purpose. Here’s an overview of typical setups for various applications, providing you with insights into creating an effective workspace.

Designing an Efficient Basic Storage Shed

If your shed primarily functions as a storage area for tools, a ride-on mower, or other equipment, consider implementing the following setup to enhance its utility:

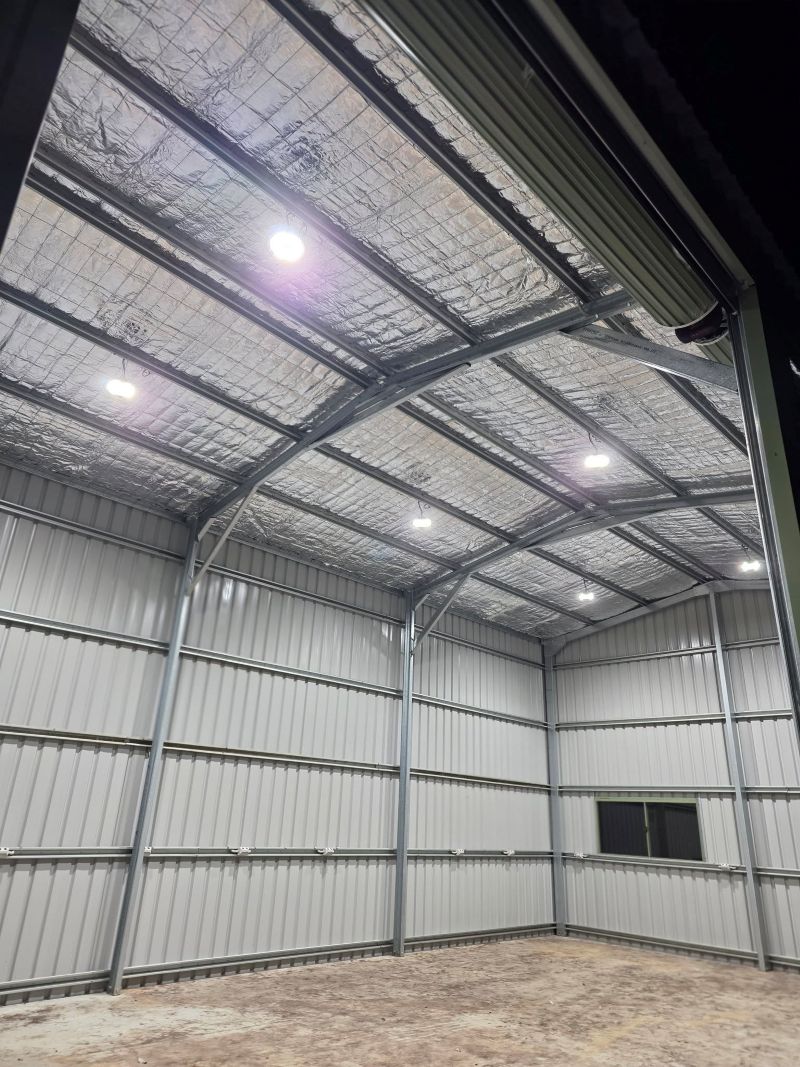

• LED batten lights — One or two ceiling-mounted LED batten lights will effectively illuminate the entire area, ensuring visibility even in low light. Your electrician can provide recommendations on the best lighting arrangement based on the shed's dimensions and layout, ensuring optimal coverage.

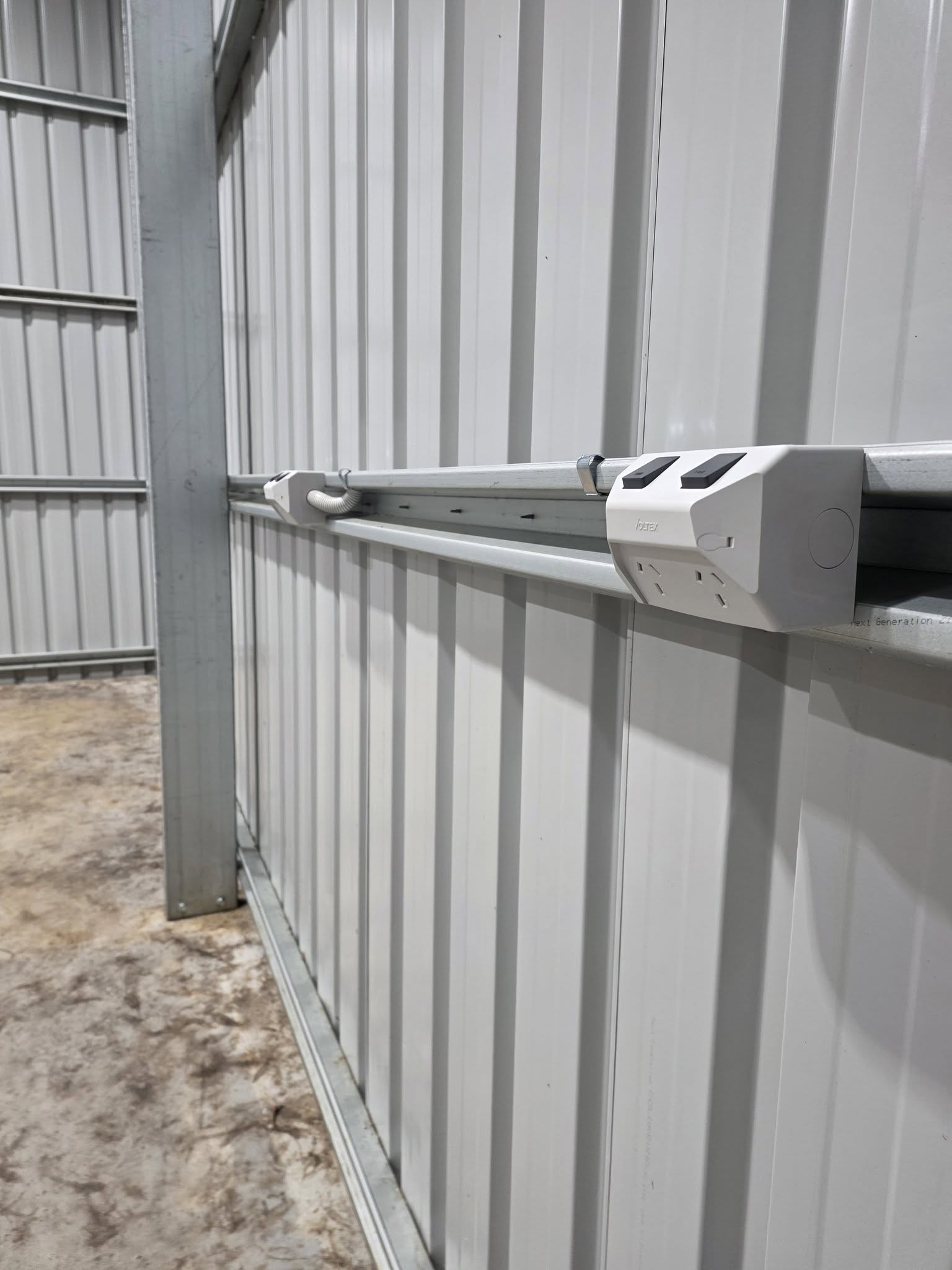

• Two to four general power points — These will be sufficient for plugging in a charger, a radio, or a drop saw when required, allowing you to operate essential tools without hassle. Expect standard power points and switches to function on a single circuit, which simplifies the setup.
• External light — A weatherproof LED light positioned above the door will enhance visibility, helping you avoid fumbling around in the dark when entering or exiting the shed.

Constructing a Fully Equipped Powered Workshop Shed

If you frequently rely on power tools such as drop saws, bench grinders, and dust extractors, a more advanced wiring configuration becomes essential to support your activities:

• Multiple circuits — Having separate circuits for lighting, general power, and dedicated tool outlets will prevent flickering lights whenever a tool is activated, ensuring a smoother workflow and enhancing safety during operation.
• Higher-rated power points — Installing 15-amp or 20-amp outlets is crucial for accommodating heavier tools that require more power to operate effectively, allowing you to utilise a wider range of equipment without overloading the circuit.
• Strategically placed additional power points — Ensure outlets are installed at bench height rather than merely at skirting level, taking into account the actual locations of your workbenches to enhance efficiency and ease of access.
• Dedicated lighting — Ensure brighter, more focused lighting is installed over work areas. Consider using LED high-bays for larger sheds to significantly improve visibility during detailed tasks, making it easier to work safely and effectively.

For comprehensive guidance on configuring dedicated circuits for heavy tools, refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which provides in-depth insights into optimal setups.

Establishing a Comprehensive Workshop With a Three-Phase Power Supply

If you intend to operate heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, single-phase power may not suffice. In such circumstances, considering three-phase power is advisable to ensure consistent energy delivery and optimal performance.

Three-phase power offers more reliable and higher-capacity energy. Your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which may take several weeks on the Mid North Coast, so it is wise to plan ahead.
• Install a three-phase sub-board in the shed, equipped with appropriate breakers and RCDs to ensure safety and compliance with electrical standards.
• Run heavier cabling — It is important to note that three-phase cable runs are generally more expensive, especially over longer distances, so budget accordingly.
• Install three-phase outlets — These industrial-grade sockets must be rated for the equipment being utilised to ensure safety and efficiency in operation.

If you are unsure whether three-phase power is necessary for your requirements, check out our article, Do I Need Three-Phase Power on My Property? This resource elaborates on when it is beneficial and when a well-designed single-phase setup will suffice. We also provide complete installations for three-phase switchboards should you choose that route.

Why Is Surge Protection Essential for the Safety of Your Shed?

Properties located on acreage in the Mid North Coast frequently experience severe lightning storms. A direct or nearby strike can inflict extensive damage to everything housed within your shed, jeopardising tools, chargers, refrigerators, and all equipment that is connected to power.

Installing a high-quality surge protection device within the sub-board acts as an affordable form of insurance. This device absorbs voltage spikes before they reach your valuable equipment, preventing potential damage. For sheds housing expensive tools or a workshop setup, surge protection is an absolute necessity to safeguard your investments and ensure longevity.

If your property utilises a generator for backup power, your electrician can also install a generator changeover switch, enabling the shed (and the house) to seamlessly switch to generator power safely during outages, ensuring uninterrupted service.

What Are the Key Regulations for Council Approval and Compliance in NSW?

There are several crucial regulations that you need to be aware of regarding electrical work:

• All electrical work in NSW must be carried out by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to reduce labour costs, all electrical tasks—including cabling, connections, sub-board installation, and more—must be executed by a licensed contractor who will issue a Certificate of Compliance (CCEW).
• Depth requirements for underground cables must comply with AS/NZS 3000 (the Wiring Rules). Your electrician will handle this aspect of the installation efficiently to ensure compliance and safety throughout the project.
• If the shed is newly constructed, development approval may be required depending on your council and the dimensions of the shed. While the electrical work itself does not necessitate a separate permit, the overall building project might, so it is wise to check with local authorities.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every job we complete comes with a compliance certificate to ensure safety and legality, providing you with peace of mind.

Estimating Costs for Shed Wiring on Acreage: What Should You Expect?

Each shed presents unique challenges—distance from the house, the requirement for single-phase or three-phase power, the number of circuits needed, and soil conditions for trenching all contribute to the overall costs. Here’s a rough guide for the Mid North Coast region:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500, providing a simple but effective setup for minimal needs.
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500, accommodating a more extensive range of tools and appliances.
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+, ensuring comprehensive power management for heavy-duty usage.

Longer cable runs (50m+), rocky terrain necessitating a rock saw, or upgrades for three-phase supply will all increase the total cost. The most reliable method to receive an accurate estimate is to have your electrician conduct a site visit, evaluate the cable route, and understand the intended use of the shed to provide a tailored quote.

For a customised quote tailored to your specific setup, please call us at 0402 079 803 or contact us here to discuss your needs further.

Addressing Your Most Common Questions About Shed Wiring

Can I Wire My Shed Myself in NSW?

No, all electrical work in NSW must be performed by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other tasks. Attempting DIY electrical work is not only illegal but also poses significant dangers to both you and your property. Your electrician will provide a Certificate of Compliance upon completion of the work, ensuring it meets legal standards and safety regulations.

How Deep Should Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables within conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to drive over the cable run, the depth typically needs to be increased to 600mm or more. Your electrician will determine the appropriate depth for your specific property, ensuring compliance with safety regulations and avoiding potential hazards.

Do I Need a Separate Meter for My Shed?

In most situations, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed is utilised as a distinct dwelling or commercial premises, which will require further discussions with your council and your energy distributor to ensure compliance with local regulations.

How Long Does It Take to Wire a Shed on Acreage?

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—generally takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth prior to commencing work. Three-phase installations often take longer, as the supply connection must first be arranged with the distributor before installation can begin, so plan accordingly.

Can I Run Power From the Shed to Other Buildings?

Yes, it is feasible; however, each additional building will require its own appropriately rated cable run and may need its own sub-board based on electrical load. Your electrician can design the entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are sufficient from the outset, rather than making subsequent additions that could lead to complications and increased costs later on.

Ensure Safe and Efficient Wiring for Your Shed

If you reside on acreage around Bellingen, Coffs Harbour, <a href="https://limitsofstrategy.com/rural-switchboard-upgrade-and-workshop-renovation/">Sawtell</a>, Boambee, or anywhere on the Mid North Coast, Hack-It Electrical Solutions is dedicated to ensuring your shed is wired correctly—whether it comprises a simple light-and-power setup or an extensive three-phase workshop tailored to your needs.

Contact us at 0402 079 803 or reach out via our website to schedule a site visit. We will assess your property, identify the most suitable cable route, and provide you with a clear, comprehensive quote tailored to your requirements.
