Minton Colours Revealed in Restoring Victorian Tiles

Discover the Causes of Worn and Patchy Minton Tile Floors in Ovington

Conducting a Comprehensive Assessment of the Floor's Initial Condition

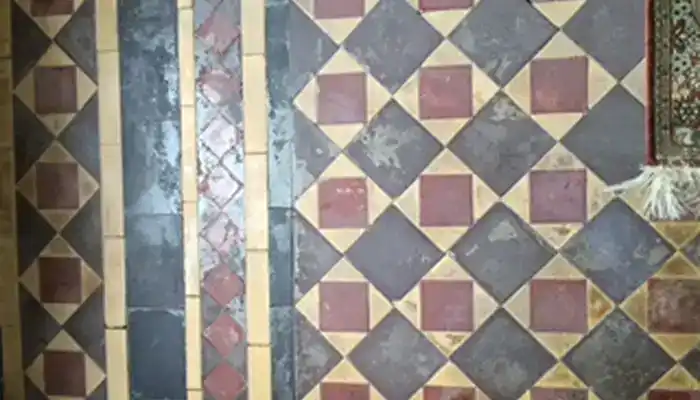

If your Minton tiles appear worn, patchy, and seemingly beyond repair, it is essential to recognise that old coatings, adhesive remnants, and surface wear may be concealing the original design. In the Ovington hallway, a dark residue obscured the surface, remnants of old glue from previous coverings were visible, and tiles had begun to shift around weakened joints. The once-vibrant surface no longer effectively showcased the original colour balance.

This restoration project aimed to rejuvenate a residential hallway floor that had been in use for more than a century, still revealing its original geometric layout. The Minton tiles had endured decades of heavy foot traffic, but layers of wax, acrylic sealers, remnants of previous sealers, and carpet adhesive had formed a grimy barrier, making the floor appear far more damaged than it truly was.

Ovington is characterised by its older residential architecture, featuring period cottages and detached homes from the Georgian and Victorian periods, alongside a few modern properties built in the latter half of the twentieth century. Victorian tile floors are commonly found in entrance hallways, porches, boot rooms, and kitchens within these older homes. Located in Buckinghamshire, near Aylesbury, Ovington is part of the HP22 postcode district and falls under the jurisdiction of Buckinghamshire Council. The village retains a traditional rural charm, with many properties still showcasing original period features and robust floor constructions.

Investigating Residue History and Revealing Hidden Marks on the Floor

If your hallway displays dark patches after carpet removal, it is likely that old glue and surface treatments have adhered to the tile rather than simply resting as loose dirt. Upon removing the covering, the carpet adhesive left behind yellow-green and brownish residues, remnants of bitumen, hardened substances, and old glue smears. Addressing these issues required softening, scraping, and extraction, rather than merely washing again.

Contamination from paint and adhesive further complicated the Ovington floor's condition, as paint splatters, scraped areas, and stained sections initially appeared to be permanent. In my experience, these residues often reside partially on the fired surface while penetrating open pores. The restoration process necessitated distinguishing between removable contamination and genuine wear before any sealing decisions could be made.

Old wax and linseed oil coatings had significantly darkened the floor because ancient coatings, waxes, and linseed oil can seep into the tile body, turning black over time. The dull surface was burdened with these protective layers, soiling layers, grime, and residues from previous cleaning treatments. Removing that layer was crucial before accurately assessing the original colours.

Identifying Loose Areas and Understanding Moisture Dynamics

If your hallway tiles exhibit movement or sound hollow, it is likely that excess water and heavy machine pressure are exacerbating the issue. The old permeable subfloors beneath this hallway could allow moisture to infiltrate if excessive amounts were used, risking tile movement, lifting edges, dampness in the bedding, and potential instability during the restoration work.

Loose tile movement occurs when individual tiles shift due to weakened bedding or grout support beneath them. Homeowners may notice cracked joints, hollow sounds, moving tiles, shifts along grout lines, or small raised and sunken areas. The solution involves stabilising, re-fitting, or carefully working around vulnerable sections before introducing stronger cleaning forces.

Subfloor moisture was treated as a critical constraint because older floors were often installed without modern damp-proof membranes. Breathable protection is vital for porous tiles, as trapped moisture, rising damp, and surface moisture can lead to salt issues and sealers that may whiten or fail, rather than providing effective protection for the tile body.

The risk of over-saturation influenced every cleaning decision, as excessive water can dislodge tiles, activate salt problems, and prolong drying after restoration. Techniques such as wet vacuum extraction, controlled rinsing, removal of soiled solutions, and the use of floor fans helped manage moisture levels, while damp meter checks and moisture readings confirmed readiness for sealing before applying protective measures.

Assessing Surface Wear and Recognising Patterns

If your main walkway appears flatter and greyer than the borders, decades of foot traffic have likely worn down the fired face more significantly in that area. The Ovington hallway exhibited this typical wear pattern, where the tile face had become more porous under footfall, allowing for greater absorption of dirt, contaminants, and coating residues.

It is crucial to note that this worn fired face cannot be rectified through grinding, as Victorian encaustic and geometric tiles are clay-fired at high temperatures. Their fired surface is chemically stable but physically vulnerable to abrasion and incompatible with acidic cleaning methods. The use of abrasive pads, harsh restoration techniques, and over-cleaning can damage soft clay inlays, ruin intricate patterns, and inflict long-term harm to the original surface. Such damage is not worth risking.

Colour wear varied significantly; black and red tiles tend to be more durable under wear, while softer buff tiles may wear more rapidly. The Ovington floor required cleaning, residue removal, and colour enhancement that respected the unglazed clay colours instead of imposing a uniform new-looking surface.

A well-restored Victorian tile floor showcases the original fired matte surface with consistent colour and pattern, while appropriately applied topical seals provide a slight protective sheen without altering the period character. This distinction was vital in this instance, as the objective was to recover the original features and subtle sheen of a period hallway, rather than create an artificial surface.

Understanding the Value of Restoring the Floor

If the pattern remains visible beneath the dark layer, restoration can often recover far more than standard cleaning might suggest. The darkest areas of the Ovington hallway primarily consisted of old coatings, wax build-up, acrylic sealers, adhesive, and ingrained soil, rather than indicating complete pattern loss.

The restoration specification allowed for adequate dwell time, controlled soak periods, deck brush agitation where safe, the use of a floor buffer only in areas with minimal movement risk, and wet vacuum extraction to remove slurry and softened residues. Hand-held diamond blocks were used solely for careful edge work where pads struggled, while scrapers, small brushes, hand buffers, and white pads managed softened coatings, excess sealers, and final appearances without resorting to aggressive abrasion.

Ongoing care, including pH-neutral cleaning, grit removal before wet mopping, and resealing at appropriate intervals, is crucial for extending the floor's lifespan. Stronger cleaning products should be avoided, as incorrect cleaners can leave residues, increase abrasion, and gradually strip protection from sealed floors. Broader care principles are outlined in the Victorian and Minton tile cleaning hub. A professionally restored and correctly sealed floor is significantly easier to clean and maintain compared to one that is worn or treated incorrectly.

Understanding the Impact of Old Adhesive and Failed Coatings on Dirt Accumulation in the Hallway

The presence of adhesive residues and failed coatings continually attracts dirt back into the hallway, as they bond contaminants to the worn clay surface. Old glue, bitumen, waxes, and surface coatings trap grime in the pores, leading to standard mopping redistributing dirty solutions rather than effectively removing the residue layer.

This phenomenon, known as residue lock-in, occurs when old products, stripped coating fragments, and ingrained dirt remain trapped within the surface after cleaning. Homeowners frequently observe dark patches, cloudy areas, and a floor that appears dull again after drying. Correcting this issue necessitates the use of coating removers, controlled scrubbing, rinsing stages, and wet vacuum extraction.

Old residue retains dirt within worn clay surfaces.

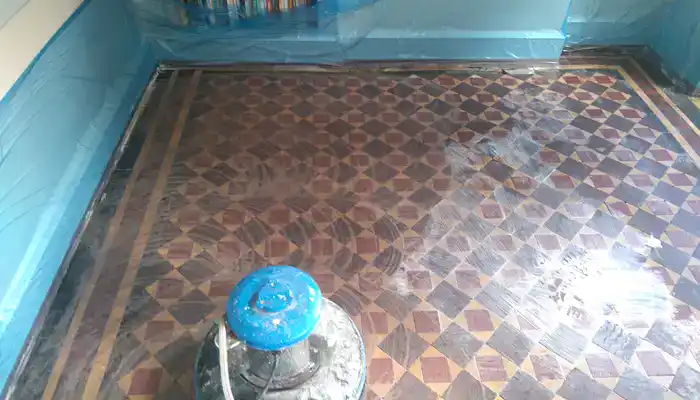

How Victorian Tile Restoration Effectively Removes Heavy Residue Without Disturbing Loose Areas

Utilising aggressive stripping methods can inadvertently loosen unstable historic clay tiles when attempting to remove old coatings. Rushed cleaning typically employs excessive water and pressure, which can lift loose tiles, damage vulnerable edges, and force slurry into weakened joints.

Controlled restoration techniques involved dwell time, low-moisture gel cleaning, careful scraper work, deck brush agitation, wet vacuum extraction, and repeated rinse control to lift softened coatings without saturating the bedding plane. This moisture-focused sequencing is key to properly restoring Victorian tiles, as old floors require a balanced approach to cleaning, stabilising, and drying decisions. The process effectively removed heavy residues while protecting the original layout.

Incomplete stripping would have resulted in old sealers, adhesive, and soiled solutions remaining in the pores, leading to a patchy appearance once the floor dried. The Ovington sequence achieved a far superior outcome, as softened residues were extracted rather than smeared around, and a dry run before sealing confirmed the surface was adequately prepared for protection.

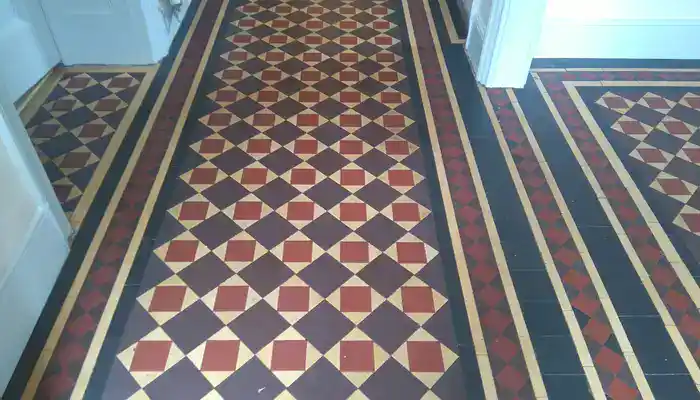

Why the Restored Minton Floor Appeared Clearer, Richer, and More Manageable

If your restored Minton floor looks clearer and richer after sealing, it indicates that the original colour was preserved beneath the coating residues. Initially, the Ovington floor appeared lighter after cleaning because the removal of waxes, old sealers, carpet adhesives, and grime from the surface revealed the true colour.

The colour-enhancing impregnating sealer penetrated the pores, enriched the geometric patterns, and left no heavy coating on the tile surface. An oil-based sealer can be compatible with suitable porous surfaces, but this floor required breathable protection, with any excess sealer buffed off using a hand buffer, resulting in a low sheen that respected the original clay character.

The completed hallway now looks significantly improved compared to its previous state. Often, restored period floors appear better than when they were first installed, as the original colours and patterns can now be appreciated clearly. The floor also became easier to maintain, as sealed pores resist rapid soiling, while the authentic surface wear serves as a testament to the floor's age and character.

Case Studies of Victorian Tile Restoration Projects Revealing Hidden Pattern Loss

Numerous Victorian tile restoration projects expose similar hidden pattern loss when old coatings and worn clay create the illusion of permanent damage. The Ovington hallway closely parallels a worn Minton floor restoration project in Walsall, where loose areas and deep soil also dictated the restoration sequence. Both projects highlight the importance of removing contamination, drying, and breathable protection before the final colour can be accurately assessed.

Related examples also arise in Victorian tile restoration in Nottingham, Victorian tile restoration in Penkhull, and restoring colour to faded Victorian mosaic tiles. These case studies maintain consistent restoration boundaries while demonstrating how old coatings, worn surfaces, moisture behaviour, and colour recovery can vary from one floor to another.

The comprehensive Victorian and Minton tile cleaning hub offers homeowners insights into cleaning and care queries without transforming this Ovington case study into general DIY instructions. The evidence presented here reflects a singular completed project: a dark, adhesive-marked, and worn hallway was successfully transformed into a clearer, richer, and more maintainable heritage surface.
